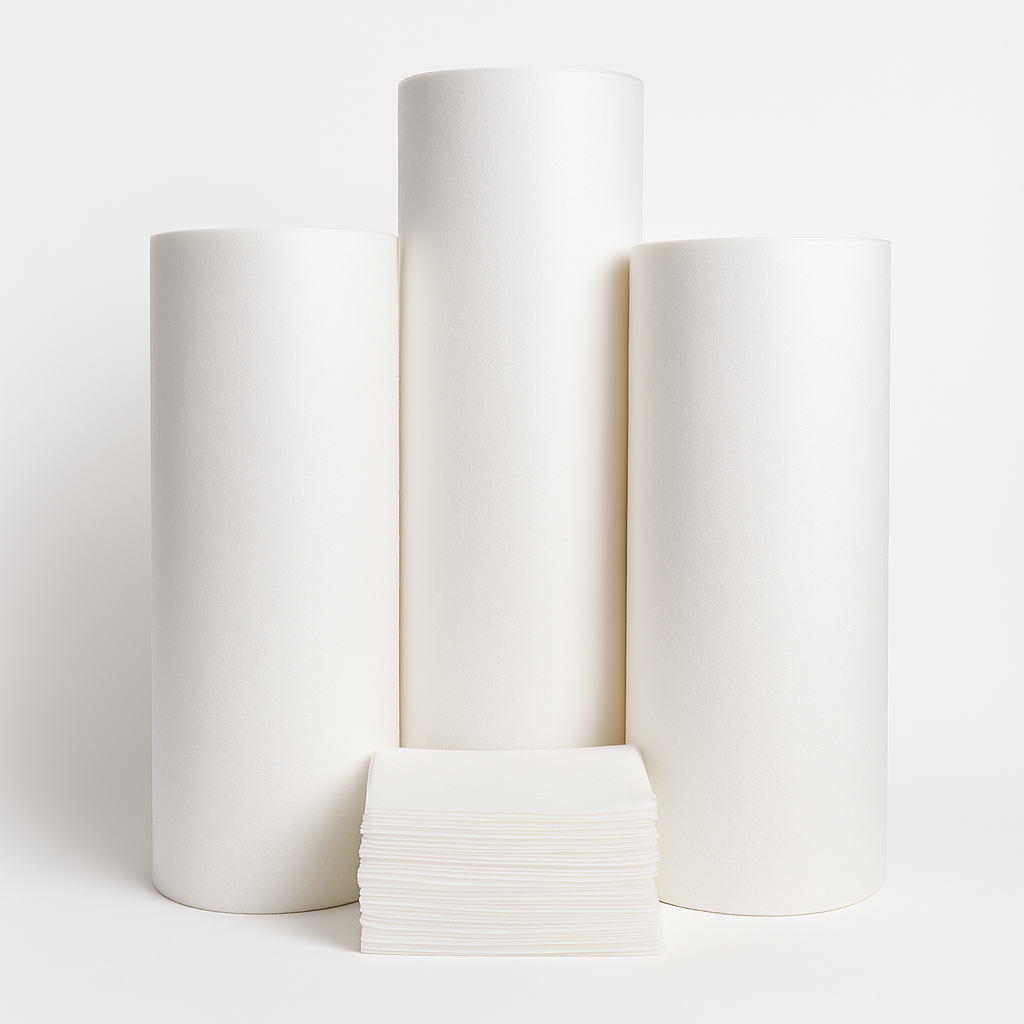

Ceiling Filter

What is a Ceiling Filter?

Ceiling filter is a high dust holding capacity surface filter used especially in high-precision environments such as paint booth cabins, ventilation systems, and clean room applications.

Generally used as a final stage filtration element, these filters are installed on the ceiling to prevent particle passage, provide clean air circulation, and play a critical role in terms of work safety.

EU5 – F5 class filtration performance makes ceiling filters a preferred solution in terms of both energy efficiency and air quality.

How Does the Production Process Work?

Ceiling filter is produced by bringing together high-quality synthetic fiber layers with a special binder. The production process includes the following steps:

Fibers are layered at specific density.
Each layer is optimized according to air flow (depth-wise structure).
Both surfaces of the filter are treated to increase particle retention.
In the final stage, the product is thermally stabilized to maintain its form and performance.

This structure increases the filter's homogeneous air distribution, long-term efficient operation, and resistance to dust load.

Durability and Technical Compatibility

Ceiling filter provides smooth adaptation to many sectoral applications thanks to the following technical features:

Weight: 600 gr/m²
Gravimetric efficiency: 97%
Recommended air velocity: 0.25 m/sec
Dust holding capacity: 370 gr/m²
Heat resistance: 100°C
Initial pressure drop: 20 Pa
Final pressure drop: 400 Pa
Filter class: EU5 / F5
Flammability: Fire-resistant structure

Low initial pressure loss enables your system to operate more efficiently with less energy. At the same time, high dust holding capacity extends maintenance intervals, reducing operating costs.

Use in Chemical Applications

Ceiling filters do not directly contact chemicals but serve as a secondary protection layer in areas where chemical vapors and particles mix with air.

Filtration of volatile organic compounds in paint booths,
Particle control of ventilation systems in chemical production facilities,
Continuity of air cleanliness in laboratories and clean rooms,

In such applications, ceiling filter is critically important for keeping ambient air at a constant quality level.

Why Should It Be Preferred?

Using ceiling filters provides significant advantages especially for the following reasons:

High filtration efficiency (97%) for healthy air quality
Low initial pressure providing energy savings
High dust holding capacity for long-lasting use
Heat and flame resistant structure – important for work safety
Extends maintenance intervals, maintains system performance

In these aspects, ceiling filters stand out as a smart investment both environmentally and economically.

Main Sectors Where Filter Bags Are Used

Ceiling filter is widely used in many sectors, especially paint booth systems:

Automotive paint booths
Furniture and wood painting facilities
Clean room applications
Ventilation and air conditioning systems (HVAC)
Electronics production areas
Pharmaceutical and medical equipment production
Chemical and laboratory environments

In these systems, filter selection directly affects not only product quality but also employee health, fire safety, and environmental inspections.

The Name of Trust in Filtration: Fora Filter

As Fora Filter, with our ceiling filter solutions, we filter not only the air but also your business efficiency.

Our expert technical team evaluates the following criteria for you to make the most suitable ceiling filter selection for your application:

Temperature and humidity conditions of the environment
Dust and particle density
Filter replacement period and maintenance possibilities
Type of ventilation system and air velocity

The right filter selection means not only clean air but also sustainable production.

Get to know Fora Filter expertise, let's guarantee your air quality together.
